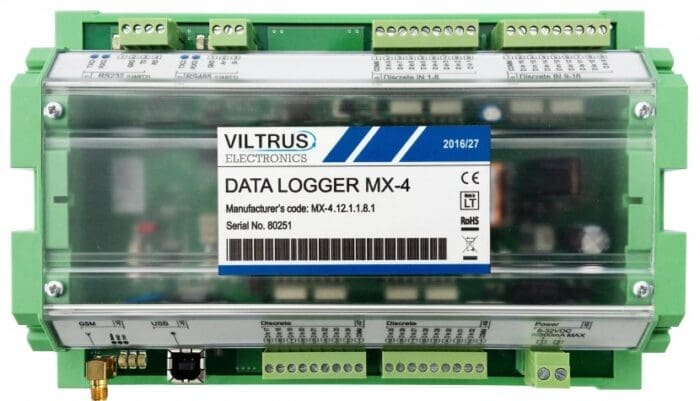

DATA LOGGER MX-4

MX-4 is GPRS logger with Modbus and M-Bus compatibility and Analog / Discrete I/O

MX-4 is dedicated for real time logging and analyzing of data. Using GPRS/GSM logger sends data to remote users / server. MX-4 can also communicate with other controllers and sensors. Device has wide range of optional interfaces and protocols (Modbus RTU, Modbus TCP/IP, IEC60870-5-104: 2000, etc.) and can read any kind of meters, controllers and sensors equipped with standard protocols.

    Download Datasheet
    Download User Manual
    Download USB Driver
    • More info
    • Technical features
    • Technical specifications
    More info

    Application possibilities

    Data Logger MX-4 is dedicated for real time logging, control and analyzing of data. Using GPRS/GSM, logger sends data to remote users / server. MX-4 can also communicate with other controllers and sensors. Device has wide range of optional interfaces and protocols and can read any kind of meters, controllers and sensors equipped with standard protocols. Perfect for telemetry/monitoring, control and smart metering. MX-4 data logger/controller can also measure and store different kinds of analog inputs (current, voltage, resistance or PT100 temperature sensors), discrete inputs (alarms or events) and also it performs control capabilities over discrete outputs (remote management).

    viltrus-water-metering-150x150

    Water metering

    viltrus-sensor-monitoring-150x150

    Sensor monitoring

    viltrus-electricity-monitoring-150x150

    Electricity metering

    viltrus-solar-monitoring-150x150

    Renewable energy monitoring

    viltrus-gas-metering-150x150

    Gas metering

    viltrus-industrial-monitoring-150x150

    Industrial metering and control

    heating-substation-viltrus-150x150

    Heat substation metering

    Agro-monitoring-150x150

    Agro monitoring

    smart-home-150x150

    Smart house

    commercial-metering-150x150

    Commercial metering

    Device adjustment to client’s needs

    If client needs custom made application or special functions, our R&D department ready to help. We can adjust our devices, include special protocols or interfaces to meet client application’s needs. Also we are ready to adjust our device for working with various meters, flow meters (even exotic ones). If you are not sure if our device can satisfy your needs, feel free to contact us anytime.

    MX-4 can read: Kamstrup, Sensus, Danfoss, L+G, Itron, Diehl, Apataor and other manufacturer’s meters. Also MX-4 can read and control other controllers, like Danfoss ECL 300.

    Application examples

    Below indicated few samples how MX-4 collects the data from meters / sensors and controllers and sends the data to local or remote users using Modbus protocol via GPRS / GSM. There is so many ways to use our MX-4. Starting from smart metering, heating substation metering, data acquisition from temperature, pressure sensors, data acquisition from weather stations and sensors, agro monitoring, chemical monitoring and telemetry, to smart house telemetry, and scientific device monitoring and telemetry. All in all MX-4 controller is ideal for smart metering, data acquisition, remote devices control, measure and store different kinds of analog and discrete I/O applications, process monitoring.

    Technical features

    – Possibility to choose interfaces: M-Bus, RS232, RS485, Data/Req, USB, GSM/GPRS, Analog IN, Discrete IN/OUT
    – Reading data from any kind of meters (water, electricity, heat, gas, cooling …) and controllers.
    – Supported protocols: Modbus RTU, Modbus TCP/IP, M-Bus, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:200 and transparent.
    – Independent data log with real time stamp (Real Time Clock)
    – Remote communication and updates through GSM/GPRS
    – Analog inputs (current, voltage, resistance, thermoresistance (Pt100, Pt1000, NTC))
    – Discrete inputs (alarms or events)
    – Control capabilities over digital outputs (remote management)
    – Galvanically isolated interfaces and power supply
    – SMS sending for alarm events
    – Additional special transparent protocol data transfer

    Did you know?

    – MX-4 can read Kamstrup, Sensus, Diehl, Apator and other meters.

    – MX-4 can read and control other controllers, like Danfoss ECL 300.

    – MX-4 can be used for various object control, like smart greenhouses.

    Technical specifications
    Description Data Logger MX-4 technical specifications
    CPU ARM7
    Flash archive storage up to 8 MB, independent data storage without power about 5 years
    RS232 (3 ports) distance up to 15 m, speed up to 19,2Kbit/s
    RS485 (3ports) distance up to 1,2 km, max 32 transivers, speed up to 19,2 Kbits/s
    M-Bus (1 port) up to 8 M-Bus devices
    Data/Req (1 port) (KAMSTRUP) data transfer interface
    GSM/GPRS 3 band 900/1800/1900 MHz
    USB type B, ver. 2,0
    Discrete IN 16 sink contact
    Discrete OUT 8 open collector, >50VDC and >500mA
    Analog IN 4 resistance, voltage or current, reading 10 times per second
    Protocols Modbus RTU, Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:2000, DynDNS, FTP server, FTP client, DNS client
    Power supply 9-36 VDC
    Over-voltage protection >1000V
    Capacity 300mA max
    Dimensions 197x128x50 mm
    Weight 450 g
    Mounting type on DIN rail
    Protection type IP20
    Operating temperature -25 to +60oC
    Real time clock Yes
    M-Bus auto setup Yes
    Certifications CE, RoHS
    Warranty period 2 years
