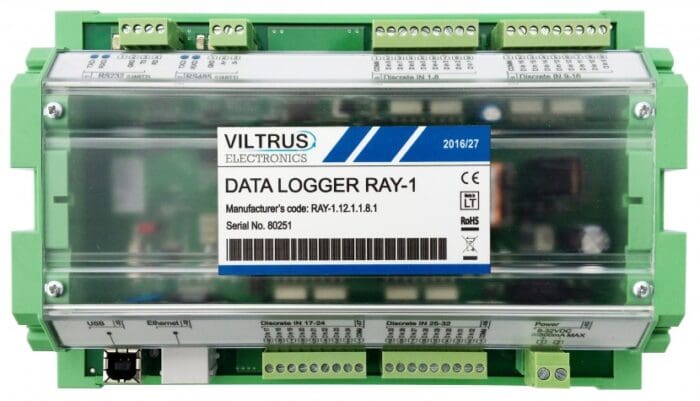

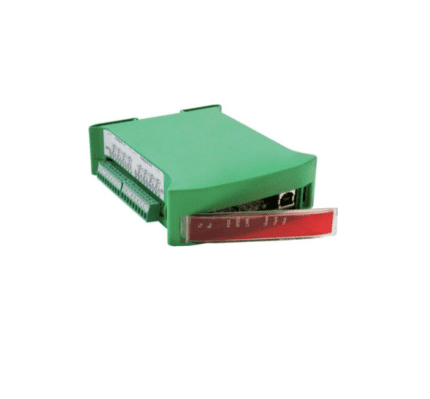

Data Logger RAY-1

RAY-1 is Ethernet Data logger with Digital Inputs

RAY-1 data logger is designed for data logging and analyzing different kinds of discrete signals (limit switches, push buttons, selector switches or relay contacts) in a real time. Data logger supports RS232, RS485, Ethernet, USB interfaces and up to 32 discrete input channels and can be used as stand-alone device or as extension module. It can be connected to any of our data loggers like MX-7 or MX-5. For data exchange over Ethernet or any serial RS232/ RS485 interfaces, logger uses Modbus TCP/IP, Modbus RTU and other protocols.

    Download Datasheet
    Download USB Driver
    Download Setup File
    More info

    Application possibilities

    Data Logger RAY-1 is dedicated for real time logging and analyzing different kinds of discrete signals. Using Ethernet, logger sends data to remote users / server. RAY-1 can also communicate with other controllers and sensors. Device has wide range of optional interfaces and protocols. Perfect for telemetry/monitoring, control and smart metering.

    viltrus-water-metering-150x150

    Water metering

    viltrus-sensor-monitoring-150x150

    Sensor monitoring

    viltrus-electricity-monitoring-150x150

    Electricity metering

    viltrus-solar-monitoring-150x150

    Renewable energy monitoring

    viltrus-gas-metering-150x150

    Gas metering

    viltrus-industrial-monitoring-150x150

    Industrial metering and control

    heating-substation-viltrus-150x150

    Heat substation metering

    Agro-monitoring-150x150

    Agro monitoring

    smart-home-150x150

    Smart house

    commercial-metering-150x150

    Commercial metering

    Device adjustment to client’s needs

    If client needs custom made application or special functions, our R&D department ready to help. We can adjust our devices, include special protocols or interfaces to meet client application’s needs. Also we are ready to adjust our device for working with various meters, flow meters (even exotic ones). If you are not sure if our device can satisfy your needs, feel free to contact us anytime.

    Application examples

    RAY-1 collects the data from meters / sensors and controllers and sends the data to local or remote users using Modbus protocol via Ethernet. There is so many ways to use our RAY-1. Starting from smart metering, switch, relay, button, pass way control and metering, sensor monitoring, data acquisition from temperature, pressure sensors, data acquisition from weather stations and sensors, agro monitoring, chemical monitoring and telemetry, to smart house telemetry, and scientific device monitoring and telemetry.

    Technical features

    – Possibility to choose interfaces: RS232, RS485, Discrete Inputs, USB, Ethernet
    – Supported protocols: Modbus RTU, Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:200 and transparent
    – Independent data log with real time stamp (Real Time Clock).
    – Remote communication over Ethernet (RJ45, 10/100Mbps)
    – Galvanically isolated interfaces and power supply
    – Additional special transparent protocol data transfer.



    Did you know?

    – RAY-1 can read, analyze, track and control various switches, buttons, relay contacts and so on.

    – RAY-1 can be used as stand alone device or expansion module to other controllers.

    Technical specifications
    Description Data Logger RAY-1 technical specifications
    CPU ARM7
    Flash archive storage up to 8 MB, independent data storage without power about 5 years
    RS485 (1 port) distance up to 1,2 km, max 32 transivers, speed up to 19,2 Kbits/s
    RS232 (2 ports) distance up to 15 m, speed up to 19,2 Kbit/s
    Ethernet 10/100 Mbps, (RJ45), distance up to 100 m
    USB type B, ver. 2,0
    Discrete IN 32 sink contact
    Protocols Modbus RTU, Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:2000
    Power supply 9-36 VDC
    Galvanic isolation >1000V
    Capacity 300mA max
    Dimensions 197x128x50 mm
    Weight 400 g
    Mounting type on DIN rail
    Protection type IP20
    Operating temperature -25 to +60oC
    Real time clock Yes
    Certifications CE, Rohs
    Warranty period 2 years
