Name: M-BUS LEVEL CONVERTER
SKU: 7414
Price: 140.00 EUR
Availability: InStock

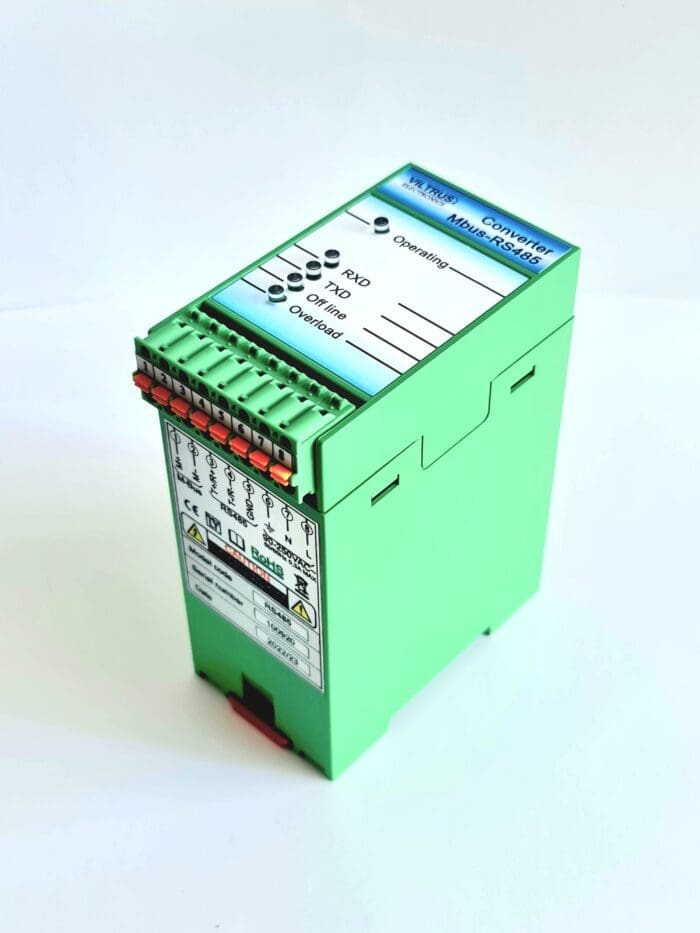

M-BUS LEVEL CONVERTER

€140.00

M-Bus Level Converter is dedicated to convert M-Bus signal to
RS232/RS485 and vice versa. Up to 250 M-Bus devices can be
connected to M-Bus Level Converter

More info

Overview

M-Bus Master / M-Bus Converter is dedicated to convert M-Bus signal to RS232/RS485 and vice versa. Up to 250 M-Bus devices can be connected to M-Bus Master / M-Bus Converter.

Additional information

Model	RS232, RS485

Technical features

Technical specifications

Description	M-Bus to RS232 / RS485 converter technical specification
M-Bus permissible load	up to 250 units of any M-Bus devices (375 mA)
RS485 / RS232 direction control	Auto
Protection of MBus short connection	Yes, triggering current 500 mA
Short connection reaction time	Programmable – 1 – 4s (recover 10 – 60s)
M-Bus line voltage	Mark – 36 – 40 V. Space 24 – 27 V
Data transfer speed	From 300 to 9600 bods
Galvanic isolation	Power– RS232 / RS485 Power – M-Bus M-Bus – RS232 / RS485
Insulation breakdown voltage	> 1,5 kV
Power supplier	90-250V~, 50-60Hz
Power consumption	Not loaded up to 3,5W, fully loaded up to 20W
Indication	LED
Enclosure	DIN rail mountable
Dimensions	45 mm x 75 mm x 105 mm
Operating conditions	From – 25 oC to + 60 oC / 95 % RH, without condensate
